EpiShear™ Cooled Sonication Platform
more reproducible results when using any probe sonicator
This has been discontinued.
The EpiShear™ Cooled Sonication Platform greatly increases sample-to-sample reproducibility when shearing chromatin or DNA by enabling you to precisely position the sonicator probe at the exact same depth in each sample every time. The platform, affectionately known as “Big Jack”, is supplied mounted inside a sound enclosure to reduce noise during sonication. It comes with your choice of a tube cooler that fits 1.5-2.0 ml microfuge, 15 ml or 50 ml tubes; the tube coolers keep your sample cold during sonication, so you don’t have to shuttle it to and from an ice bucket to prevent it from overheating.

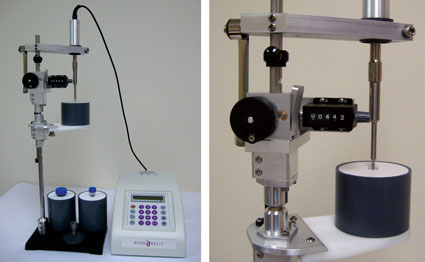

Figure 1: The EpiShear Cooled Sonication Platform.
The Benchtop Tube Coolers have been disccontinued.
|EpiShear™ Cooled Sonication Platform, 1.5 ml||1 platform||53080||N/A|
|EpiShear™ Cooled Sonication Platform, 15 ml||1 platform||53081||N/A|
|EpiShear™ Cooled Sonication Platform, 50 ml||1 platform||53082||N/A|
|Benchtop 1.5 ml Tube Cooler||1 cooler||53076||N/A|
|Benchtop 15 ml Tube Cooler||1 cooler||53077||N/A|
|Benchtop 50 ml Tube Cooler||1 cooler||53078||N/A|
|EpiShear™ Cooled Sonication Platform Manual|
|Tech Note: Sonication Recommendations for ChIP|
|EpiShear™ Sonicators Profile|
|Newsletter - October 2015|

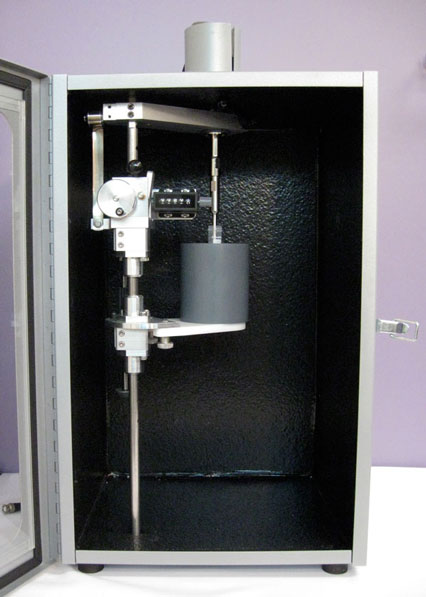

The EpiShear Cooled Sonication Platform was designed to improve the sample-to-sample reproducibility obtained when using probe sonicators by enabling the tip of the probe to be positioned at the same depth in the sample each sonication. The platform has been machined out of stainless steel and aluminum, and includes a hand crank, a height counter and a vertical alignment tool, so once you have determined the optimal settings for your probe and tube type, you can recreate them over and over. The EpiShear Cooled Sonication Platform is supplied already mounted on a stainless steel rod inside of a sound enclosure. The sound enclosure will reduce the volume of noise produced by your sonicator by approximately 35 db (Figure 1).
Figure 1: The EpiShear Cooled Sonication Platform.

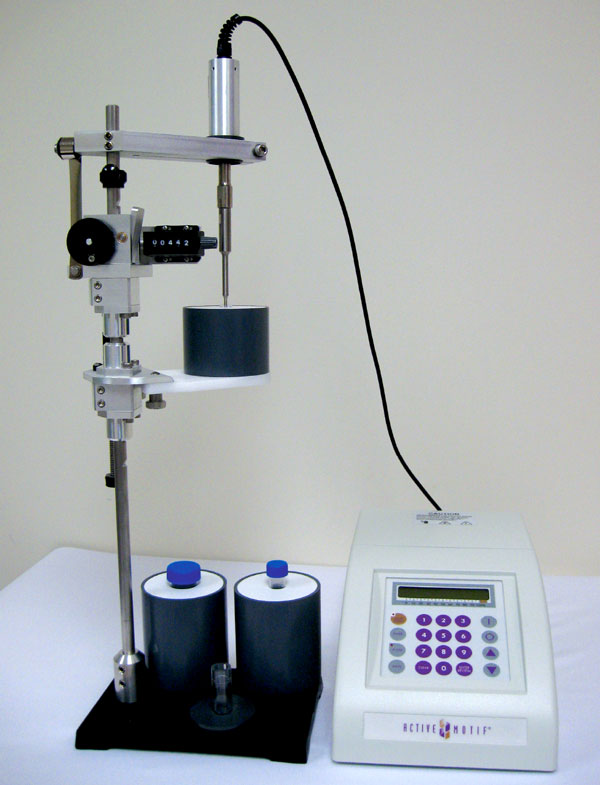

The EpiShear Cooled Sonication platform is designed to be used with Active Motif's Tube Coolers, which are available in sizes that fit microfuge, 15 ml and 50 ml tubes. The Tube Coolers keep the sample cold during sonication, so you don't need move the sample to and from an ice bath to keep it cold during sonication. The supplied vertical alignment tool is used to determine the depth of the probe inside the tube when it is in the Cooler. Once the appropriate adjustments have been made to ensure proper probe height within the tube, record the number displayed on the height counter. Using this same setting for all experiments will ensure consistency between samples. With a programmable sonicator like the EpiShear Probe Sonicator (Catalog No. 53051), you can simply set the duration of the On and Off pulses, place the sample in the tube cooler, press Start, then walk away.

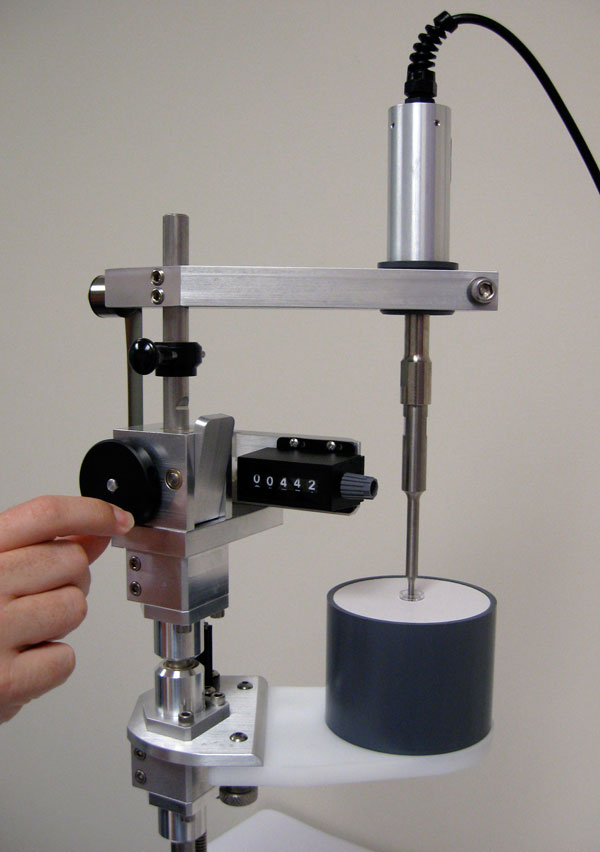

Figure 2: Close up view of the platform alignment tool, Tube Cooler, 1.5 ml, and the height counter setting.
The Tube Coolers have been discontinued.
Active Motif's Tube Coolers are an integral part of the EpiShear Cooled Sonication Platform as they both hold the tube precisely and keep the sample cold during sonication. This enables you to take full advantage of the programmable features of Active Motif's EpiShear Probe Sonicator. No longer will you have to repeatedly take the probe out of the sample and place the sample in an ice bucket to prevent it from overheating. You can simply set the duration of the On and Off pulses, and the sample can remain in the cooler for up to 2 hours of sonication.
You have your choice of a cooler that will hold a 1.5-2.0 ml microfuge, 15 ml or 50 ml tube when you purchase the platform, and all 3 coolers are also sold separately (Figure 1). This enables you to shear samples of various sizes, or to keep samples cold on your benchtop during other experiments. The Tube Coolers have many more uses than just sonication.

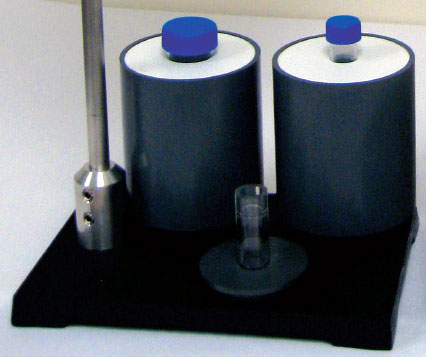

Figure 1: Tube Coolers to hold 1.5-2.0 ml microfuge, 15 ml and 50 ml tubes.
Depending on the size of the converter/probe being used, the height of the converter/probe bracket can be adjusted vertically on the rod. Using the supplied hex wrench, the set screws are loosened and the platform is adjusted to the new height. Then the screws are tightened to secure the platform on the rod.
Figure 1: Adjustment of the converter/probe bracket to accommodate different probe sizes.
The EpiShear Cooled Sonication Platform is supplied pre-assembled inside of a sound enclosure (28" H x 14.25" W x 12" D). The unit is supplied with a probe chimney, sonication platform, an alignment tool for setting the height of the probe in your samples and your choice of one Tube Cooler that will hold either 1.5-2.0 ml microfuge, 15 ml or 50 ml tubes. (Tube coolers are sold separately if you need more than one size.) In addition, hex wrenches and an alternate spring bracket are included if adjustments are needed to fit your converter/probe.
