Library QC for ATAC-Seq and CUT&Tag

AKA “Does My Library Look Okay?”

Library QC for ATAC-Seq and CUT&Tag

By Michelle Tetreault Carlson, Ph.D.

December 8, 2021


ATAC-seq and CUT&Tag have become immensely popular techniques for probing chromatin structure in recent years. ATAC-Seq enables researchers to detect the locations of open chromatin, nucleosomes, and occupied transcription factors using adapter-loaded Tn5. CUT&Tag reveals protein-chromatin interactions using a target antibody and adapter-loaded pA-Tn5. Both protocols are popular because they are relatively straight-forward to perform and because they result in a sequence-ready library. (For more information on these approaches see the Complete Guide to Understanding and Using ATAC-Seq and the Comprehensive Guide to Understanding and Using CUT&Tag Assays.)

Before moving forward with sequencing, most end users first do quality control on the library. Sequencing is expensive, so laboratories don’t want to proceed unless there is a high likelihood of it resulting in quality data. The final QC step for these methods involves checking both the size distribution and the concentration of the adapter ligated library fragments. But because many scientists are new to these methods, there is a lot of uncertainty as to what these fragments should look like and how much is required for sequencing.

To make matters trickier, ATAC-Seq and CUT&Tag library traces can vary quite significantly between sample types or from prep to prep. Unlike other types of DNA libraries which typically start with isolated DNA, these libraries are prepared from either intact nuclei or intact cells. Tagmentation of the DNA requires transposome access, through the nuclear or cell membrane, to the chromatin inside. This accessibility can be affected by cell type, cell number, cell health, cell aggregates, and the relative the concentration of transposomes to DNA. The result can be a lot of diversity in the quantity and size of library fragments.

Because of this, the most common question we are asked by customers at Active Motif is “Does this library trace look okay?” While the library trace does give some qualitative information which indicates whether or not to move forward, it’s not always simple or even possible to determine if the sequencing will be successful just by looking at the library. It can give you useful information that can indicate a high likelihood of success, or other times when it might be better to make some modifications to the prep and try again. Below we provide some tips and tricks that our R&D, EpiServices, and Technical Support teams have put together over the last few years for how to analyze your library.

 Back to Table of Contents

Analyzing Fragment Sizes

To evaluate ATAC-Seq and CUT&Tag libraries we recommend checking the fragment distribution after library amplification, using a DNA fragment analyzer like the Agilent TapeStation with the D1000 Screen Tape Assay or the Agilent Bioanalyzer with the DNA 1000 Chip. An electropherogram of the fragments gives a nice visual of fragments sizes and their frequency. It’s best to choose an assay that is designed for best resolution under 1000 bp.

 Back to Table of Contents

Library QC: ATAC-Seq

In eukaryotic chromatin, nuclear DNA is packaged in nucleosomes, each containing 147 bp of DNA coiled around a histone octamer core, with short 20-90 bp DNA linkers separating each nucleosome. Tight or loose packaging of genes within this chromatin can control whether they are expressed. In regions of chromatin where DNA interacts loosely with histones, or open chromatin, transcription promoters and enhancers can gain accessibility to DNA so that transcription can occur. In regions of chromatin where DNA is tightly bound to histones, or closed chromatin, promoter and enhancer regions are hidden from transcription factors and unable to activate transcription.

ATAC-Seq takes advantage of the fact that adapter-loaded Tn5 also has preferential access to open chromatin DNA, cutting and inserting adapters in the DNA. This can occur anywhere within the 20-90 bp linker region between nucleosomes, creating short fragments <90 bp from within the linker region or larger fragments where nucleosomes are sandwiched between Tn5 cuts in the DNA. This is reflected in the size of the ATAC-Seq library DNA fragments. After library amplification, which adds on the P5/P5 Illumina flow cell adapters plus the indexes, library fragments contain the original DNA insert plus an additional 135 bp from the adapters on each end. This creates library fragments starting at around 200 bp which then increase to around 1000 bp. Because of the periodicity of neighboring nucleosomes, fragments pile up with peaks between 160-200 bp apart.

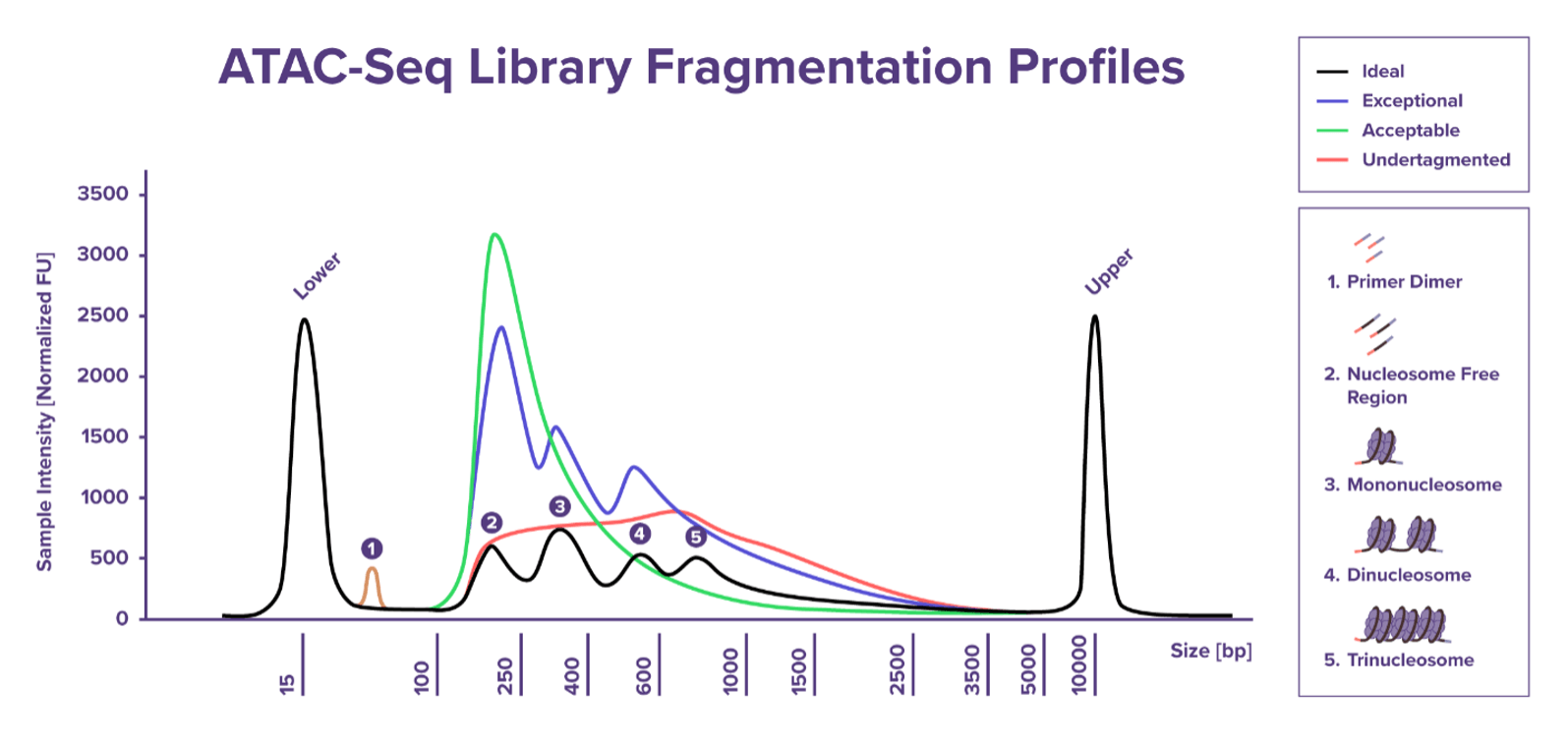

Due to variability in sample type, number of cells, and sample handling, the size and shape of library traces can vary quite a lot. It depends on the cell type, their health, the number of cells, and ratio of transposomes to DNA. The number of nucleosome peaks can vary and depends on how frequently Tn5 is able to cut the DNA. We have not found much correlation between number or size of peaks and good sequencing data. Sometimes peaks are obvious while other times they appear smeared over the range of fragments making the DNA library look more like a ski slope. What is most important is to see a good spread of fragments over the range between 200-1000 bp, with the majority under 600 bp. See Figure 1 below.

Figure 1

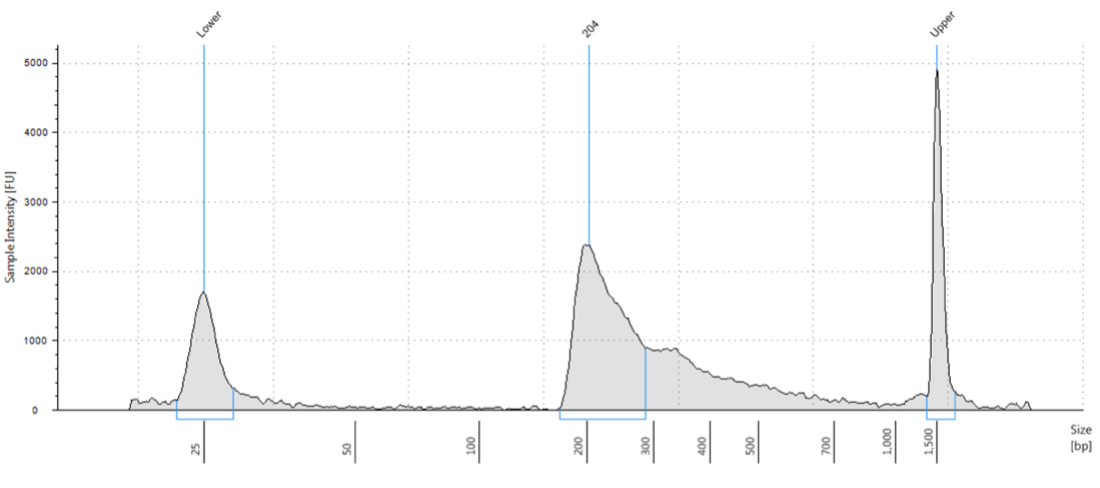

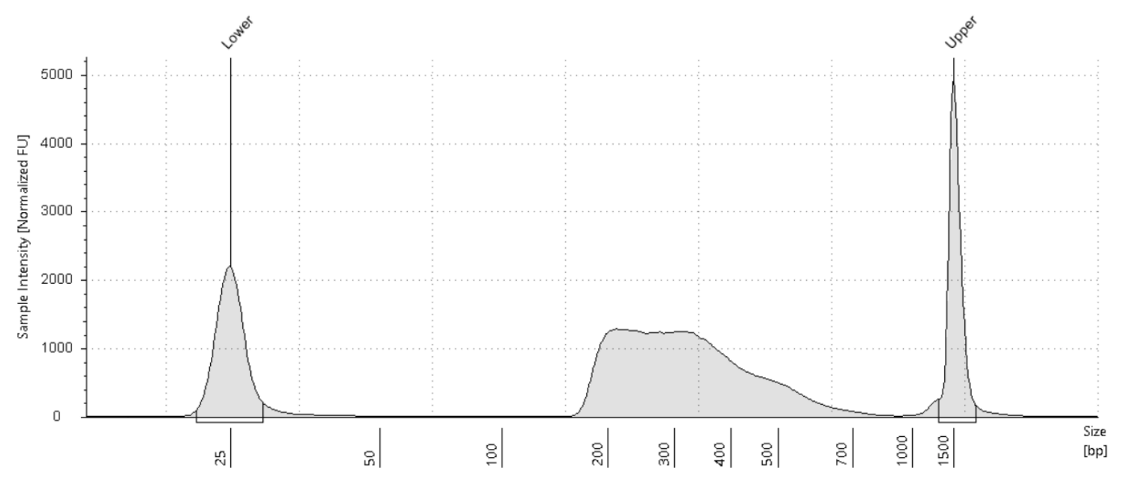

Figure 1. ATAC-seq library starting with 100,000 fresh GM12878 Cells.


If the loaded Tn5 does not have adequate access to the open chromatin in the cells, or if the ratio of Tn5 to DNA is too low, it will not be able to cut the DNA at a high enough frequency to create fragments in the ideal range. Referred to as under-tagmentation, the majority of the fragments will be greater than 800 bp. See Figure 2. The downside of all these large fragments is they cluster inefficiently on the flow cell, creating low cluster density and lower output. Because they do not sequence as efficiently as smaller fragments, a higher number of sequencing reads will be required to get the same coverage, at higher cost.

Figure 2

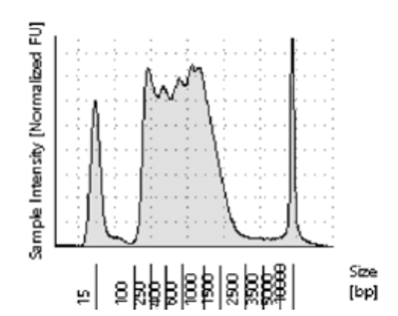

Figure 2. Under-tagmented ATAC-Seq library with most of the fragments between 800 and 2500 bp.

There can be several causes for undertagmentation. But most commonly it’s due to a poor nuclei prep, which makes it difficult for the Tn5 to gain access to the chromatin. We see it more often in tissue samples than in cultured cells, likely because it’s more difficult to get good separation and suspension of nuclei from tissue. If not careful, tissue will not be adequately separated into a single cell suspension, making for poor lysis of cells. If under-tagmentation is being observed in libraries try some of the following tips:

  1. Ensure complete resuspension in lysis buffer (homogenization for tissue).
  2. Increase incubation time in lysis buffer on ice.
  3. Increase tagmentation time.
  4. Add additional PBS washes prior to lysis, in case something in the sample is inhibiting lysis.

Another cause of large DNA fragments is poor sample quality. Many dead cells can result in an excess of unprotected, apoptotically-derived DNA that can saturate the activity of the Tn5, leaving little activity for chromatin bound DNA. To prevent this use fresh cells or cryopreserve cells in 50% FBS/40% growth media/10% DMSO. If using tissue, excise, and flash-freeze in liquid nitrogen. Store at -80 °C. Work quickly with tissue and do not allow it to thaw before transferring it to a petri dish on ice for mincing.

FACS sorted cells will undergo damage from the sorting process. Use good sorting techniques to minimize damage. Start with as many cells as possible. Note that sorting for a rare population of cells <10% will do more damage to the target cells than a higher one like 70%.

Good general lab technique will help with consistency. If only doing one or two preps at a time, pipetting volumes for some reagents can be just a half microliter or two, which is difficult to pipette accurately. Create a tagmentation master mix when possible and do several preps at once, for consistency between samples.

Salvaging the Library Prep

When there is undertagmentation, the prep does not necessarily need repeating. By doing a right-sided cleanup of the DNA with SPRI beads, large fragments can be removed. Our standard ATAC-Seq protocol contains a left-sided cleanup of the library, removing small fragments like primers under about 150 bp. Because there is always some sample loss during SPRI bead clean-up, a right-sided cleanup step to remove large fragments is not part of our standard protocol. It’s typically not necessary. However, if it’s observed that most of the library fragments are over 800 bp, a right-sided cleanup to remove the large fragments is probably worth the small sample loss, in order to get more efficient sequencing. In Figure 3 below, an example is shown of an ATAC-Seq library before and after a right-sided clean-up using 0.6x ratio of AMPure XP beads to DNA volume. While there is some overall loss of the DNA, there is still plenty for sequencing. See below for Library Yields: ATAC-Seq.

Figure 3

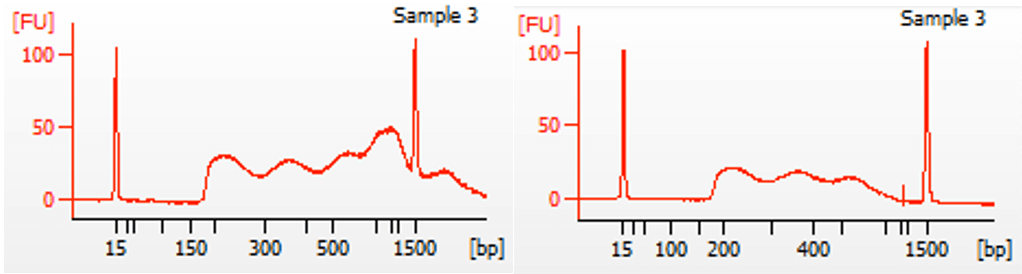

Figure 3. Right-sided clean-up of DNA using 0.6x ratio of AMPure XP beads to DNA volume.

Library Yields: ATAC-Seq

Another common question we get is how much library to expect per ATAC-Seq prep. In the most ideal circumstances, starting from 50,000-100,000 fresh cells, and a perfectly executed protocol, there can be as much as 400-600 ng. In the Active Motif Kit this is eluted in 20 µl elution buffer for a concentration of 20-30 ng/µl. FACs sorted cells will give lower yields for the same number of cells, due to cell damage. Also, sometimes there are not 50,000 cells to work with, which means less library. Inexperienced users may get less DNA due to losses from the various steps, especially the SPRI bead clean-up. Limit loss of sample by gently adding ethanol to the bottom of the tube and allowing it to gently rise in the tube without disturbing the magnetic pellet. Do not over dry the magnetic beads. If the beads crack, this can result in sample loss. During column purification of DNA be sure to pipette the elution buffer to the center of the column.

Fortunately, a small amount of DNA is required for sequencing. Active Motif Services sometimes has samples that are as low as 20 ng (1 ng/µl) which are sequenced with quality data. It’s best not to get too hung up on the yields. If there is enough DNA for pooling libraries on the sequencer, and the fragments look good, then it’s probably worthwhile moving forward with sequencing.

 Back to Table of Contents

Library QC: CUT&Tag

In the CUT&Tag protocol, there is no cell lysis step for isolation of nuclei. Intact cells are first bound to magnetic Concanavalin A beads before a primary antibody is bound to either a histone mark or transcription factor target on the DNA. A secondary antibody is then bound to increase the signal and an adapter-loaded pA-Tn5 used to target the secondary antibody where it cuts the DNA at that location. Unlike ATAC-Seq there will not be as many small fragments, as the pA-Tn5 should only be cutting where the antibody is bound. A mononucleosome and oligonucleosome ladder is typically observed in the library prep trace due to the peak-to-peak distance between neighboring nucleosomes. With the length of the adapters on the DNA of 135 bp and a peak-to-peak nucleosome distance of 150-200 bp, the result is a nucleosome ladder 150-200 roughly the same distance apart. See an example in Figure 4 below which shows a library trace for H3K27me3 and K562 cells.

Figure 4

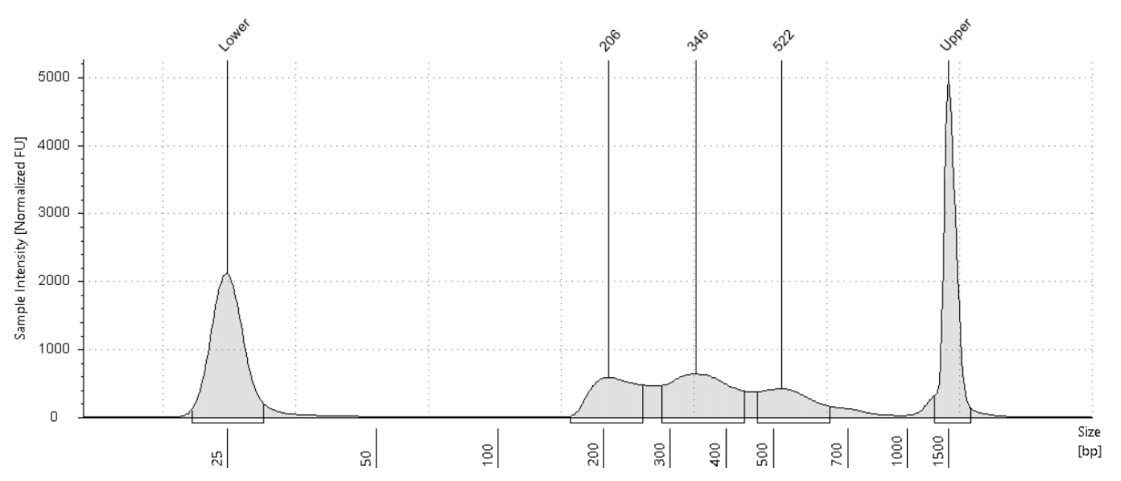

Figure 4. Example CUT&Tag library from 100 thousand K562 cells and H3K27me3.

Small variations in the ratio of the antibody or pA-Tn5 and the number of cells can shift the height of the peaks. However, as demonstrated in the paper by Kay-Okur et al, (2019), these variations are not critical as they still can result in consistent sequencing data. Figure 6 below, shows how changes in the amount of pA-Tn5 added to the tagmentation reaction can cause variability in library peaks, with lower concentrations shifting the larger peaks to higher fragment sizes. Yet, these all resulted in identical normalized sequencing tracks.

Figure 5

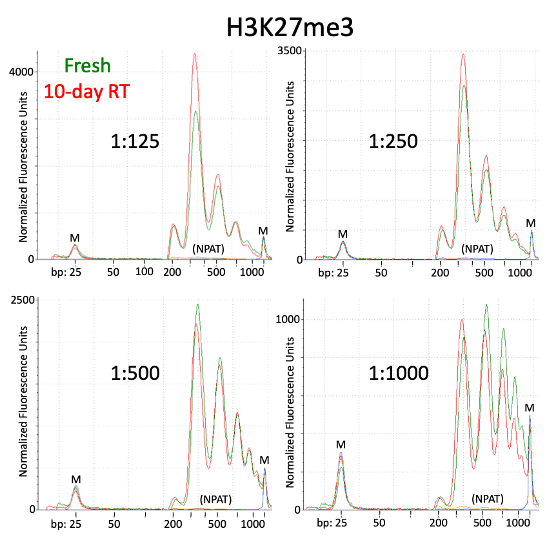

Figure 5. Figure adapted from Kay-Okur et al, (2019) shows fragment analysis from CUT&Tag was done for libraries for the abundant histone modification, H3K27me3, and a scarce target, transcription factor NPAT. Varying dilutions of pA-Tn5 were used during tagmentation. After a single 1.1X AMPure-bead clean-up, DNA was eluted with 25 μl 10 mM Tris-HCl pH 8, and Tapestation D-1000 analysis was performed on a 2 μl sample. Markers (M): lower = 25 bp and upper = 1500 bp.

Library Yields: CUT&Tag

If a sparse antibody target like a transcription factor is used or a small number of cells (<20,000), there may appear to be little to no library at all in the electropherogram. This makes it difficult to determine whether to move forward with sequencing. In these cases, it’s useful to run a positive control alongside these samples to ensure the protocol is working. As Steven Henikoff has pointed out, fragments from H3K27me3 are easily detected, as the genome coverage in most cell types is ~3% , which equates to ~100 million base pairs over a human genome. Genome coverage for a transcription factor with 10,000 bound sites is ~1 million base pairs, which might not be detectable by library fragment analysis. In Active Motif Services, if a positive control like H3K27me3 shows a good signal, then even if there is no visible library with another antibody, we have found it is worthwhile to move forward with library quantitation. If there is at least 1 ng/ μl (~4 nM for average of 360 bp) then it is worthwhile moving forward with sequencing. Figure 7 below shows an example of a very low quantity library from K562 cells and an H3K27ac antibody. This library resulted in enough DNA for successful sequencing.

Figure 6

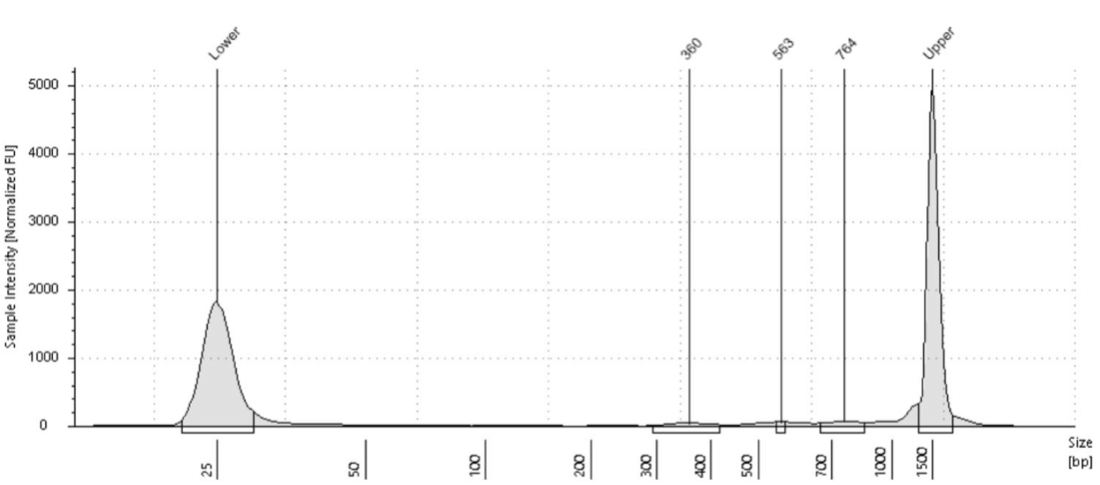

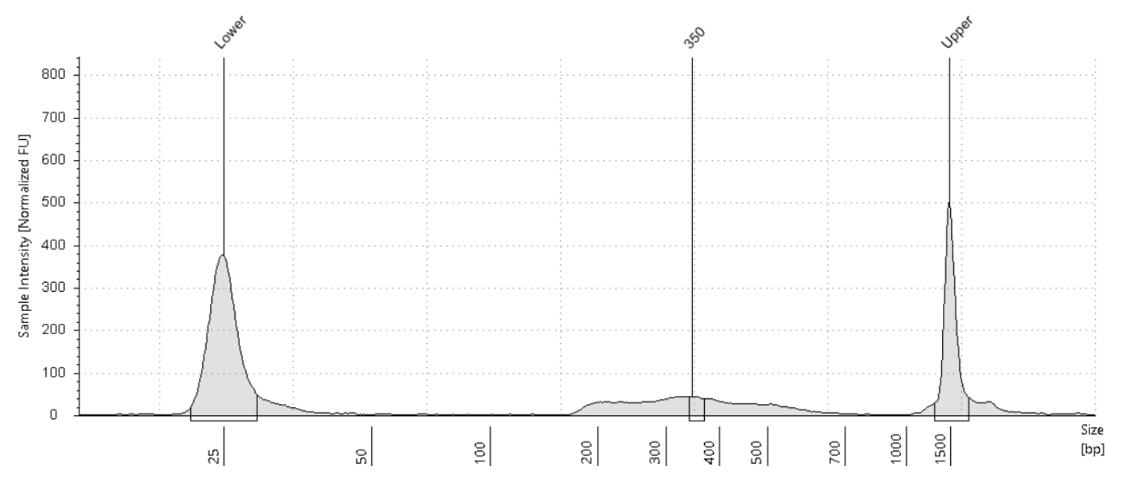

Figure 6. Example CUT&Tag library from 100 thousand K562 cells using an H3K27ac antibody. Despite the low yields, there was enough DNA for successful sequencing and quality data.

Library Quantification - General Guidelines

When pooling libraries for sequencing, it is important that library concentrations be accurate so that cluster densities are optimized on the flow cell and that there is a uniform distribution of reads across all libraries. Optimal concentrations are determined by the sequencer and the sequencing reagent kit used. When combined, each library will be diluted by the others. And so, the minimum library concentration required needs to be higher than the final library concentration that goes into the sequencer.

To quantify the library for sequencing on an Illumina instrument, we recommend using a qPCR-based assay like a KAPA Library Quantification Kit. Estimates of yields can be determined from a TapeStation or Bioanalyzer, but it will not be as accurate. KAPA Library Quantification works by selectively amplifying library fragments which contain the P5 and P7 adapter sequences that bind to the Illumina flow cell. By amplifying only those fragments, theoretically only sequencable DNA will be quantified. It’s a more accurate technique for quantification than using a spectrophotometry-based method like a NanoDrop or an electrophoresis-based system like the Bioanalyzer, both which will quantify all DNA whether it contains adapters or not.

With a qPCR-based assay, the quantification cycle (Cq) for each amplified library is compared to the Cq values from a set of DNA standards. The library concentration can then be determined from the standard curve. The molar concentration depends on the size of the DNA fragments. This is straight-forward for many library preps, where there is a single narrow and uniform peak, but ATAC-Seq and CUT&Tag libraries contain a large spread in fragment density, often with multiple peaks. This can make it a little trickier to determine the working concentration. You’ll need to look at where most of the fragments lie or the highest peak in the sample and use that. Support for calculating dsDNA library concentration from molar concentration and pooling libraries can be found on the Illumina website.


Expect variability in the appearance of library fragments in ATAC-Seq and CUT&Tag. Even when using kits which contain consistent reagents each time, small variations in cell numbers, cell lysis, or the frequency of a particular histone mark, can result in differences in cutting frequency of the Tn5 or pATn5. However, even with this variability in cutting frequency and the resulting differences in library fragment appearance, the quality of sequencing data can still be robust between these samples, as data peaks still depend mainly on the accessibility of Tn5 to open chromatin or pA-Tn5 to an antibody. The appearance of the library should be seen as a qualitative indicator as to whether it is worthwhile to move forward with sequencing.

Quantification of libraries should be done using a qPCR-based assay for accuracy and for most efficient and balanced sequencing on the flow cell. Hopefully, the guidelines above will be helpful when deciding how to proceed with libraries. Please feel free to contact Active Motif technical support with any questions at tech_support@activemotif.com.

 Back to Table of Contents



Holly Brunton, Ian M. Garner, Ulla-Maja Bailey, Rosie Upstill-Goddard, Peter J. Bailey, Using Chromatin Accessibility to Delineate Therapeutic Subtypes in Pancreatic Cancer Paient-Derived Cell Lines, STAR Protocols, Volume 1, Issue 2, 2020,100079, ISSN 2666-1667 https://doi.org/10.1016/j.xpro.2020.100079.

Ou, J., Liu, H., Yu, J. et al. ATACseqQC: a Bioconductor package for post-alignment quality assessment of ATAC-Seq data. BMC Genomics19, 169 (2018).

Kaya-Okur, H.S., Wu, S.J., Codomo, C.A. et al. CUT&Tag for efficient epigenomic profiling of small samples and single cells. Nat Commun 10, 1930 (2019).
https://doi.org/10.1038/s41467-019-09982-5 .


A special thank you to scientists Jesse Lopez and Casidee McDonough in Active Motif Services for their technical expertise on ATAC-Seq and CUT&Tag.
