Histone H4K20me1 antibody (mAb)

RRID: AB_2615074
Clone: 5E10-D8
Catalog No: 39727 Format: 100 µg ¥88,000 Buy
Catalog No: 39027 Format: 50 µg ¥52,000 Buy
Catalog No: 39728 Format: 10 µg ¥24,000 Buy

Request a quote for a bulk order Request Quote


Product Review Submit a Review


Antibody Type:
Monoclonal
Isotype:
IgG1, k
Purification:
Protein A Chromatography
Host:
Mouse
Molecular Weight:
8 kDa
Reactivity:
Human, Wide Range Predicted

Applications

ChIP Validated ChIP-Seq Validated Western Blot Validated Immunofluorescence Validated Dot Blot Validated Immunocytochemistry Validated

Application Notes

Applications Validated by Active Motif:
ChIP: 5 - 10 µg per ChIP
ChIP-Seq: 5 - 10 µg each
ICC/IF: 1 µg/ml dilution
WB: 0.5 - 2 µg/ml dilution
DB: 1 µg/ml dilution

ChIP-Seq validation was performed by Active Motif's Epigenetics Services; the complete data set is available in the UCSC Genome Browser by clicking here.

For Histone H4K20me1, we also offer AbFlex® Histone H4K20me1 Recombinant Antibody (rAb). For details, see Catalog No. 91291.

Published Applications

The following applications have been published using this antibody. Unless noted above, Active Motif may not have validated the antibody for use in these applications:

CUT&Tag
ChIP-qPCR
Native ChIP
FISH
WB

View publications that use Active Motif products & services here. Enter the product number(s) to see publications & applications that use this antibody.

Immunogen

This Histone H4 monomethyl Lys20 was raised against a synthetic peptide containing monomethyl Lys20 of Histone H4.

Buffer

Purified IgG in 70 mM Tris (pH 8), 105 mM NaCl, 31 mM glycine, 0.07 mM EDTA, 30% glycerol and 0.035% sodium azide. Sodium azide is highly toxic.

View our Guide to Histone Modifications and Biological Function.

References

Histone H4K20me1 antibody (mAb) - 100 µg (Cat. No. 39727)

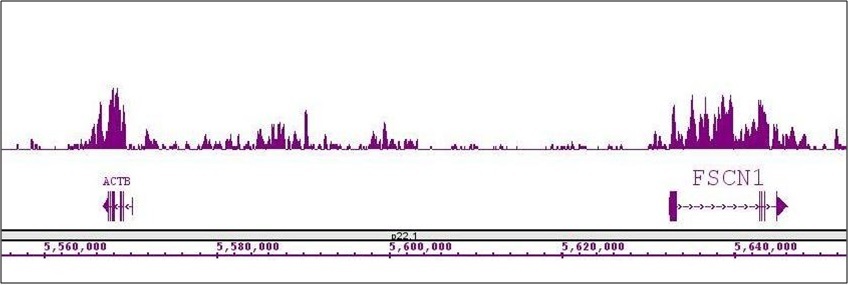

Histone H4K20me1 antibody (mAb) tested by ChIP-Seq.
ChIP was performed using the ChIP-IT® High Sensitivity Kit (Cat. No. 53040) with 20 ug of chromatin from a human medulloblastoma cell line and 4 µg of antibody. ChIP DNA was sequenced on the Illumina HiSeq and 12 million sequence tags were mapped to identify Histone H4K20me1 binding sites. The image shows binding across a region of chromosome 7. You can view the complete data set in the UCSC Genome Browser, starting at this specific location, here.

Histone H4 monomethyl Lys20 antibody tested by immunofluorescence.
Detection of Histone H4 monomethyl Lys20 by immunofluorescence. HeLa cells were stained with Histone H4 monomethyl Lys20 antibody at a dilution of 1 µg/ml. Top panel: Histone H4 monomethyl Lys20 antibody staining. Middle panel: DAPI. Bottom panel: merge.

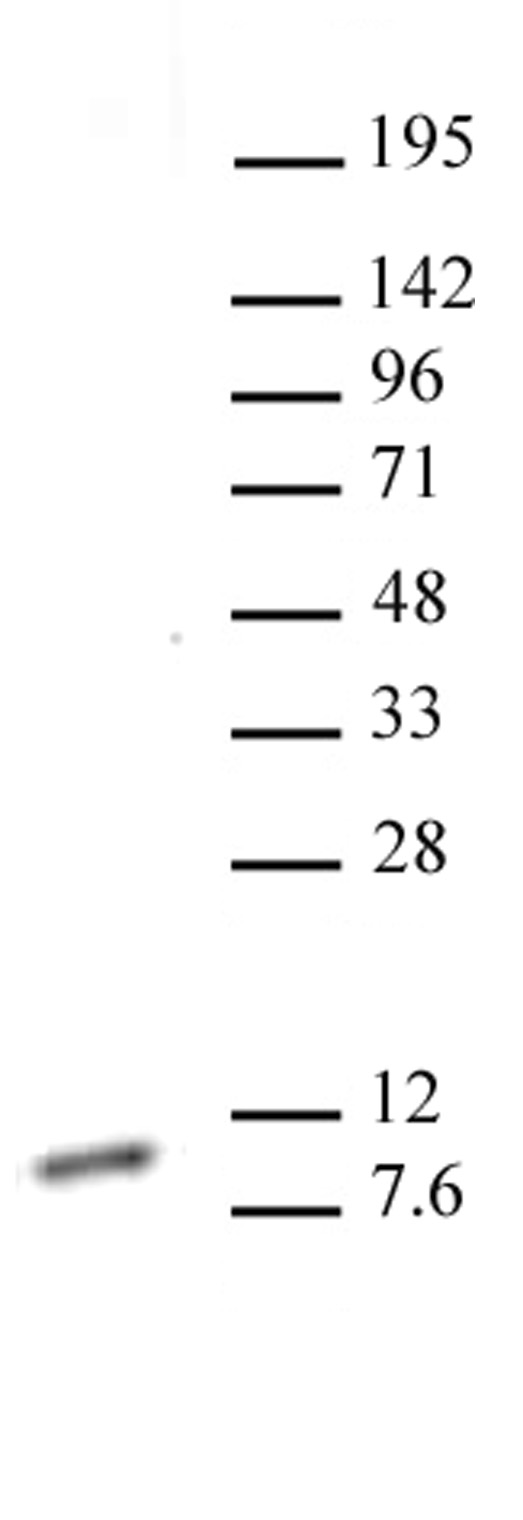

Histone H4 monomethyl Lys20 mAb (Clone 5E10-D8) tested by Western blot.
Detection of Histone H4 monomethyl Lys20 by Western blot. The analysis was performed using nuclear extract of HeLa cells probed with Histone H4 monomethyl Lys20 pAb (Clone 5E10-D8) at a dilution of 1 µg/ml.

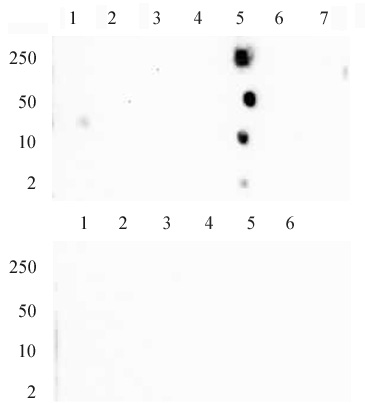

Histone H4 monomethyl Lys20 mAb (Clone 5E10-D8) tested by dot blot analysis.
Dot blot analysis was used to confirm the specificity of Histone H4 monomethyl Lys20 mAb (Clone 5E10-D8) for monomethyl-lysine 20 of histone H4. Peptides corresponding to the immunogen and related peptides were spotted onto PVDF and probed with Histone H4 monomethyl Lys20 mAb (Clone 5E10-D8) at 1 ug/ml. The amount of peptide (picomoles) spotted is indicated next to each row.
Top panel: Lane 1: unmodified Lys79 peptide Lane 2: monomethyl Lys79 H4 Lane 3: dimethyl Lys79 H4 Lane 4: trimethyl Lys79 H4 Lane 5: monomethyl K20 H4 Lane 6: dimethyl K20 H4 Lane 7: trimethyl K20 H4 Bottom panel: Lane 1: monomethyl Lys31 H4 peptide Lane 2: dimethyl Lys31 H4 peptide Lane 3: trimethyl Lys31 H4 peptide Lane 4: monomethyl Lys44 H4 peptide Lane 5: dimethyl Lys44 H4 peptide Lane 6: trimethyl Lys44 H4 peptide.

Background

Histone H4 is one of the core components of the nucleosome. The nucleosome is the smallest subunit of chromatin and consists of 147 base pairs of DNA wrapped around an octamer of core histone proteins (two each of Histone H2A, Histone H2B, Histone H3 and Histone H4). Histone H1 is a linker histone, present at the interface between the nucleosome core and DNA entry/exit points; it is responsible for establishing higher-order chromatin structure. Chromatin is subject to a variety of chemical modifications, including post-translational modifications of the histone proteins and the methylation of cytosine residues in the DNA. Reported histone modifications include acetylation, methylation, phosphorylation, ubiquitylation, glycosylation, ADP-ribosylation, carbonylation and SUMOylation; they play a major role in regulating gene expression.

Histone 4 lysine 20 (H4K20) can be mono-, di- or trimethylated by different histone methyltransferases such as NSD1 or ASH1. The methylation of this lysine is often associated with transcriptional repression. Monomethylation of histone H4 at lysine 20 is detected on the inactive X chromosome in female mammals and implicated in chromosome condensation.

Positive Control

Active Motif's HeLa acid extract (Catalog No. 36200) can be used as a positive control for Histone H4 monomethyl Lys20 mAb (Clone 5E10-D8).

Chromatin IP Assays

This antibody has been validated for use in ChIP and/or ChIP-Seq, and can be used with Active Motif's ChIP-IT® High Sensitivity Kit or our magnetic bead-based ChIP-IT® Express Kits. For an overview of all of our ChIP products, please visit our Chromatin IP Page to learn about ChIP products designed for use with Histone H4K20me1 antibody (mAb).

Storage

Some products may be shipped at room temperature. This will not affect their stability or performance. Avoid repeated freeze/thaw cycles by aliquoting items into single-use fractions for storage at -20°C for up to 2 years. Keep all reagents on ice when not in storage.

Guarantee

This product is guaranteed for 12 months from date of receipt.

This product is for research use only and is not for use in diagnostic procedures.

Application Key

  • ChIP = Chromatin Immunoprecipitation;
  • ChIP = ChIP Sequencing;
  • CUT&RUN = Cleavage Under Targets and Release Using Nuclease;
  • CUT&Tag = Cleavage Under Targets and Tagmentation;
  • DB = Dot Blot;
  • ELISA = Enzyme-linked Immunosorbent Assay;
  • EMSA = Electrophoretic Mobility Shift Assay
  • FC = Flow Cytometry;
  • ICC = Immunocytochemistry;
  • IF = Immunofluorescence;
  • IHC = Immunohistochemistry;
  • IP = Immunoprecipitation;
  • MeDIP = Methyl-DNA Immunoprecipitation;
  • NEU = Neutralizing;
  • WB = Western Blotting
